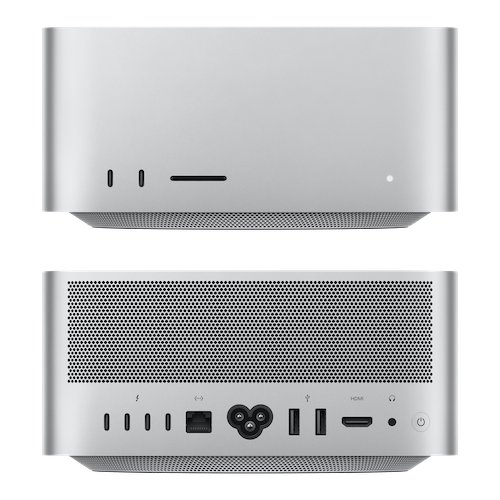

Mac Studio M5 Max, 18CPU & 32GPU /36GB/512GB SSD

Choose your
superpower.

Powered by M5 Max and M5 Ultra, Mac Studio is the ultimate pro desktop. With mind-bending graphics, faster memory and storage, and unprecedented AI capabilities, Mac Studio ignites a whole new world of possibilities.

Built for creators, developers, engineers, and all kinds of pros, M5 Max delivers exceptional performance and on-device AI compute. Edit high-resolution RAW stacks, compile massive codebases, push real-time 3D and motion graphics, and run large language models locally.

Apple Intelligence and Siri AI. More personal. More powerful.

Apple Intelligence helps you write, express yourself, and get things done effortlessly. Turn notes into a sprint agenda, surface an old edit just by describing the scene, or use Visual Intelligence to get details about a shoot location. And Siri AI is more helpful than ever, with richer answers, natural conversations, and a dedicated app.

Chip

Apple M5 Max chip

• 18-core CPU with 6 super cores and 12 performance cores

• 32-core GPU

• Neural Accelerators

• Hardware-accelerated ray tracing

• 16-core Neural Engine

• 460GB/s memory bandwidth

Media Engine

• Hardware-accelerated H.264, HEVC, ProRes, and ProRes RAW

• Video decode engine

• Two video encode engines

• Two ProRes encode and decode engines

• AV1 decode

Configurable to:

• M5 Max with 18-core CPU, 40-core GPU, and 16-core Neural Engine (614GB/s memory bandwidth)

Memory

36GB

• 36GB unified memory

Configurable to:

• 48GB, 64GB, or 128GB (M5 Max with 18-core CPU and 40-core GPU)

Storage

512GB

• 512GB SSD

Configurable to:

• 1TB, 2TB, 4TB, or 8TB

Audio

• Built-in speaker
• 3.5 mm headphone jack with advanced support for high-impedance headphones
• HDMI port supports multichannel audio output

Connections and Expansion

Four Thunderbolt 5 (USB‑C) ports with support for:

• Thunderbolt 5 (up to 120Gb/s)
• USB 4 (up to 120Gb/s)
• USB 3 (up to 10Gb/s)
• DisplayPort 2.1
• Two USB 3 (USB‑A) ports (up to 5Gb/s)
• HDMI 2.1 port
• 10Gb Ethernet
• 3.5 mm headphone jack

On front (M5 Max):

• Two USB-C ports (up to 10Gb/s)

• SDXC card slot (UHS-II)

Communications

Wireless

• Apple N1 wireless networking chip

• Wi‑Fi 7 (802.11be)²

• Bluetooth 6

• Thread networking technology

Ethernet

• 10Gb Ethernet (Nbase-T Ethernet with support for 1Gb, 2.5Gb, 5Gb, and 10Gb Ethernet using RJ-45 connector)

Size and Weight

• Height: 3.7 inches (9.5 cm)

• Width: 7.7 inches (19.7 cm)

• Depth: 7.7 inches (19.7 cm)

• Weight (M5 Max): 6.0 pounds (2.7 kg)³
