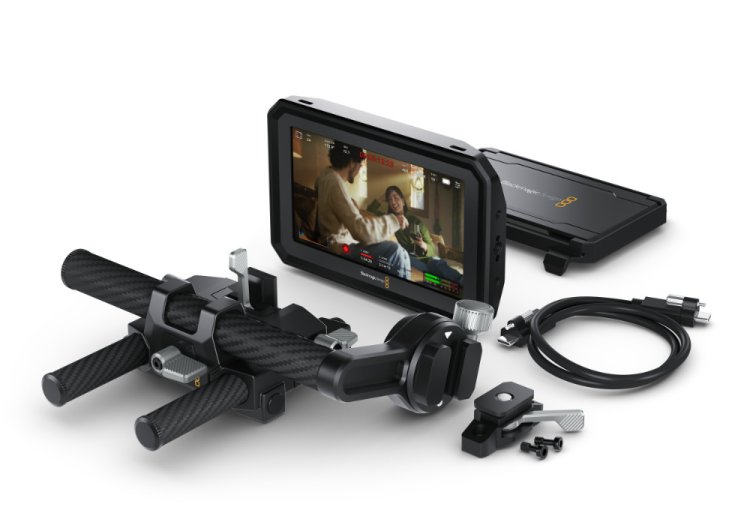

Blackmagic PYXIS Monitor is a versatile 5″ HDR touchscreen monitor with full camera control that can be mounted almost anywhere. Blackmagic PYXIS Monitor EVF Kit contains the monitor, foldable sunshade, locking USB cable, PYXIS Mounts and URSA Cine EVF mounts to attach the monitor to Blackmagic PYXIS and Blackmagic URSA Cine cameras. Blackmagic PYXIS Monitor EVF Kit includes everything needed to use the PYXIS Monitor as an electronic viewfinder.
Features
- Display Size
- 5 inch.
- Display Resolution
- Full 1920 x 1080.
- Display Type
- LCD capacitive touchscreen.
- Display Brightness
- 1500 nits.
- Frame Rates
- Up to 60fps.
- Tally
- Rear facing LED tally light.
- Accelerometer
- Automatically rotates image when monitor mounted upside down.
- Control On Screen Controls
Button Controls
- Includes F1, F2, F3 assignable function buttons to recall preset parameters or toggle functions.
- Function Button Toggle
- Clean Feed
- Status Text
- Display LUT
- Frame Guides
- Focus Assist
- False Color
- Zebra
- Grid
- Safe Area Guide
- Off Speed Record
- Focus Zoom
- Focus
- Record
- Auto White Balance
- Color Bars
- Playback
- False Color + Zebra
- OIS
- Stream
- Still
Mounting Points
- 1 x 1/4-20 bottom mounting point with ARRI locating pin pattern.
- 2 x M4 bottom mounting points.
- 1 x 1/4-20 side mounting point with ARRI locating pin pattern.
- 2 x M4 side mounting points.
Mounting Brackets
- Blackmagic PYXIS Monitor Swivel Mount
- Blackmagic PYXIS Monitor Fixed Mount
- Blackmagic PYXIS Monitor Dovetail Shoe
- Blackmagic URSA Cine EVF Bracket
Compatible Cameras
- Blackmagic PYXIS 6K
- Blackmagic PYXIS 6K PL
- Blackmagic PYXIS 6K EF
- Blackmagic URSA Cine 12K LF
- Blackmagic URSA Cine 17K 65
Physical Specifications
Environmental Specifications
- Operating Temperature: 0°to 40°C
- Storage Temperature: -20°to 60°C
- Relative Humidity: 0% to 90% non-condensing
What's Included
- Blackmagic PYXIS Monitor
- Blackmagic PYXIS Clip On Sunshade
- Welcome wallet with QR code for software download
- Blackmagic Design Sticker
