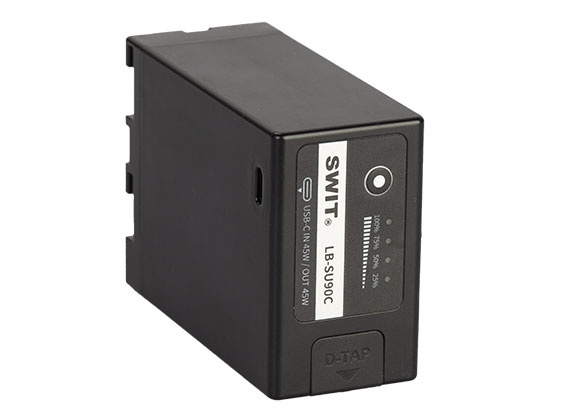

90Wh SONY BP-U Battery with D-tap and USB-C

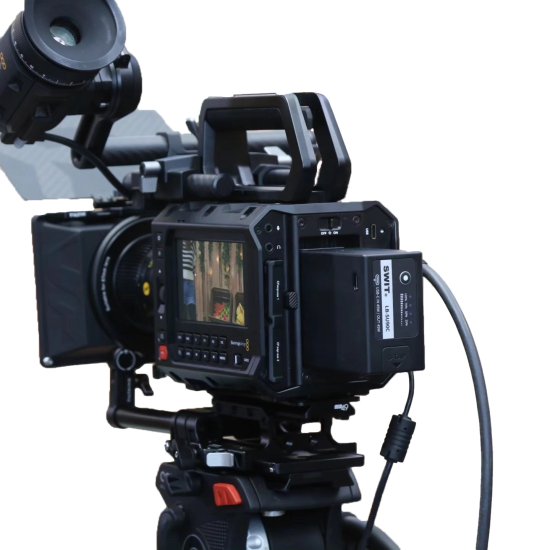

LB-SU90C is a new 90Wh large capacity BP-U type DV battery with D-tap output and 45W USB-C in/out, for SONY PXW FS5/FS7, PXW-FX6/FX9, PXW-Z200, HXR-NX800, PXW-Z280/X280, Blackmagic PYXIS 6K, etc.
90Wh Large Capacity
LB-SU90C consists of 8 battery cells, 14.4V nominal voltage, 90Wh/6200mAh large capacity to keep cameras powered for longer time. The constant power load is 70W/6A.

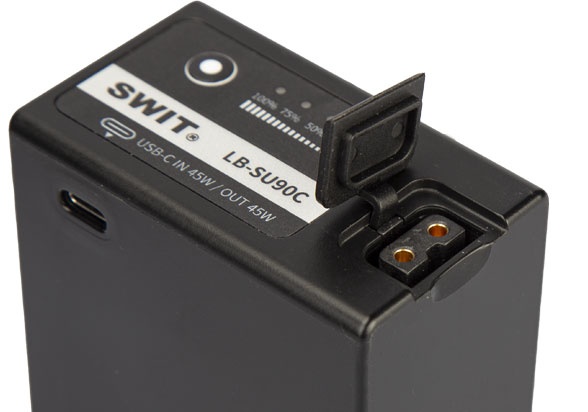

14.4V D-tap Power Socket
The LB-SU90C BP-U battery provides a D-tap power socket of 11-16.8V voltage, 70W/6A high load for various kinds of video devices. You can also charge the battery via the D-tap socket by SWIT PC-U130B2.

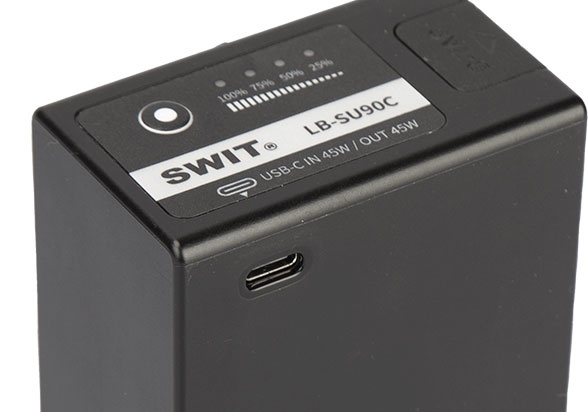

USB-C 45W for Laptop
You can also charge LB-SU90C by USB-C charger. Supports 5V/9V/12V/15V/20V(Max) 2.25A, 45W power input, which means you can fully charge the 90Wh battery within 3 hours.
Specifications:
Nominal voltage: 14.4V
Capacity: 90Wh, 6.2Ah
Max power load: 70W, 6A
D-tap: 14.4V, 70W, 6A
USB-C:
- 45W input: 5V/9V/12V/15V/20V, 2.25A
- 45W output: 5V/9V/12V/15V/20V, 2.25A
- BC1.2, QC2.0/3.0, PD2.0/3.0, FCP, SCP
Dimension: 70×42×96mm
Charging Temperature: 0-40°C
Discharging Temperature: -20°C-50°C (Capacity and Max Load may decrease when operating below 0°)
Weight: 462g
